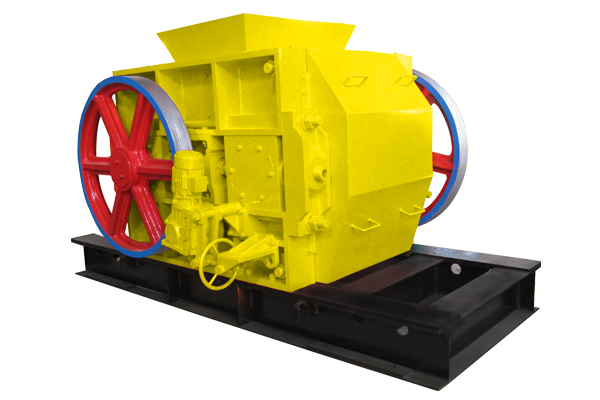

GS Series Double Roller Crusher
GS120x100 Double Roller Crusher is one of the crushing equipments of brick & tile, cement, mining production of raw materials. Especially for production of brick & tile material processing with better refining and knead grinding.
The machine rollers with diameter 1200mm, adopted hard alloy roller ring with carbide hardness more than HRC50, roller ring with higher hardness, self-weight, smaller angle of material feeding, effectively squeezing and knead grinding raw materials, refining raw materials, improving its plasticity index, reducing rejection rate, increasing production capacity, ensure the quality of insulation products, benefits of brand and economic. Applicable to all types of mid-hard (Platts Hardness 4-5) materials crushing.
| Data | Units of meas | GS120x100 | GS100x80 | GS100x70 |
| Production Capacity | m3/h | 40-65 | 40-55 | 35-50 |
| Roller Specification | mm | Ф1200x1000 | Ф1000x800 | Ф1000x700 |
| Roller Gap | mm | <2 adjustable | <2 adjustable | <2 adjustable |
| Feeding Moisture Content | % | 10-18 | 10-18 | 10-18 |
| Feeding Size | mm | ≤30 | ≤30 | ≤30 |
| Power | kw | 90+75 | 75+55 | 55+45 |
| Overall Dimension | mm | 3940x2450x2200 | 3300x1850x1860 | 3300x1750x1860 |
| Weight | kg | 27000 | 13000 | 12000 |
| Data | Units of meas | GS80x60 | GS80x50 | GS70x50 |
| Production Capacity | m3/h | 30-40 | 25-35 | 20-25 |
| Roller Specification | mm | Ф800x600 | Ф800x500 | Ф700x500 |
| Roller Gap | mm | <2 adjustable | <2 adjustable | <2 adjustable |
| Feeding Moisture Content | % | 10-18 | 10-18 | 10-18 |
| Feeding Size | mm | ≤30 | ≤30 | ≤30 |
| Power | kw | 2x30 | 2x22 | 2x18.5 |
| Overall Dimension | mm | 3900x1300x1300 | 3900x1200x1300 | 3500x1100x1230 |
| Weight | kg | 5500 | 5100 | 3600 |
