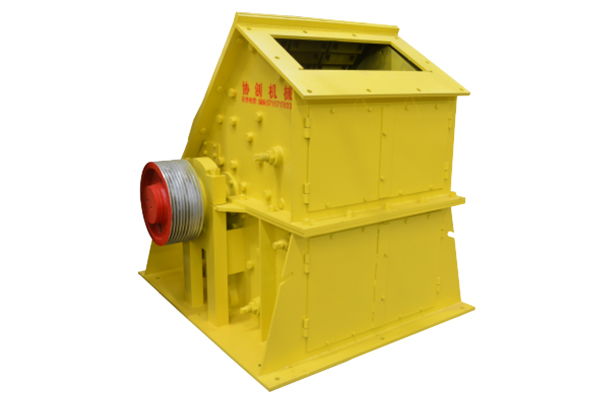

Hammer Crusher

Hammer Crusher

The machine is suitable for grinding of coal gangue, shale, limestone and other raw materials. Require the raw materials particle size < 150 mm and moisture content is below 10%. The machine average discharging granularity is below 3 mm, adjusting the grate plate gap can control the discharging granularity. Appropriate increase grate plate clearance was beneficial to the improvement of the production.


Data Units of meas PC108 CPN-Ф900X900
Production Capacity t/h 25-35 15-25
Inbound Material Granularity mm ≤100 ≤30
Outbound Granularity mm 1-3 1-3
Feeding Moisture Content % <10 <8
Size Of Feed Opening mm 350x880 200x900
Power kw 110-4 90-4
Overall dimension mm 1800x1900x1800 2300x2100x1400
Weight kg 6100 4000
