JKB50-3.0

Quantity:
JKB50-3.0

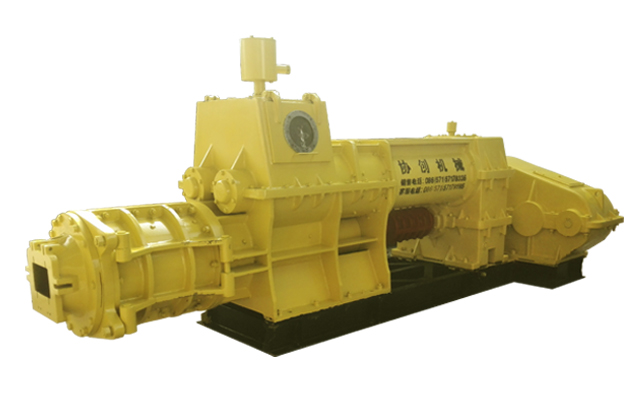

It consists of reducer driving system, up-stage mixing extruder, down-stage forming extruder, vacuum chamber, vacuum system and chassis.
The up-stage and down-stage designed with cross range, vacuum system separated from the host machine, and connected through sealing pipe.

01-主机-JKB50-06

Data Units Of Measurement JKB50/50-3.0 JKB50/45-3.0
Production Capacity Pieces/h 12000-18000 12000-18000
Reamer Diameter mm 500/500 500/450
Pressure Mpa 3.0 3.0
Moisture Content % 17-21 17-21
Vacuum Degree Mpa -0.092 -0.092
Upstage Main Shaft Speed r.p.m 29-37 29-37
Downstage Main Shaft Speed r.p.m 27-35 27-35
Power kw 185-6 185-6
Overall Dimension mm 5200x2050x2150 5200x2050x2150
Weight kg 14500 14500
