Tooth Crusher

Quantity:

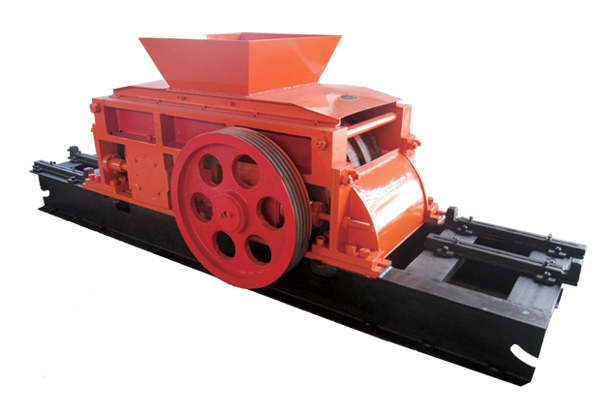

Tooth Crusher

It’s raw materials coarse crushing equipment of brick & tile, cement, minerals production. This model with twin tooth type roller assembly and compact structure. Tooth roller sleeve surface covered by a wear-resistant materials, higher surface hardness, wear resistance, lower maintaining costs, higher production capacity, and lower power consumption. Especially suitable for mud, shale, gangue and other medium hard (Platts Hardness 4~5) materials coarse crushing.

03-破碎机-2PGC系列齿式破碎机-01

Data Units of measurement ZPGC80x60 ZPGC70x50 ZPGC60x60
Production Capacity m3/h 30-45 25-40 20-30
Power kw 2x30-6 2x22-6 2x15-6
Overall dimension mm 3900x1300x1300 3500x1200x1230 3600x1060x1060
Weight kg 5600 3600 2800
